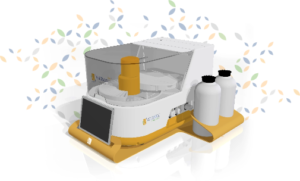

AviChem Mini ™

  • Smallest Full Automated Benchtop Analyzer

  • Random Access Analyzer Upto 150 Test/hour

  • Optional Battery Powered

  • User Friendly Software

  • High Performance

  • Capability To Program Upto 100 Methods.

  • Space Oriented

Enquire Now
Download Brochure

Innovative – Powerful – Compact – Cost Effective

Technical information:

Voltage 100-240 VAC
Electrical consumption 2-3.15 A
Frequency 50-60Hz
Power 150 Watts
Heat emission 42 C Maximum
Halogen Lamp 6V, 10w
Reagent rack Removable rack with 20 refrigerated positions
Sample tray Removable tray with 10 positions
Reaction segments 4 reaction segments of 24 cuvettes of single use (96 total)
Sample volume 2–300 µl
Reagent volume 2–350 µl
Filters 340, 405, 505, 546, 578, 600, 650 and 700w (+ 2 free positions)
Dimensions H X D X W = 40 x 60 x 38 cm
Weight 41.8 lbs (20 kg)
